Radium Engineering Coolant Tank Kit 2015-2017 Ford Mustang

Product SKU:
RAD-20-0286
Item Shipping:
FREE Shipping
Availability:
In-Stock
  • Radium Engineering Coolant Tank Kit :: 2015-2017 Ford Mustang
  • Radium Engineering Coolant Tank Kit :: 2015-2017 Ford Mustang
Our Price: $294.45
Frequently bought together:
Description

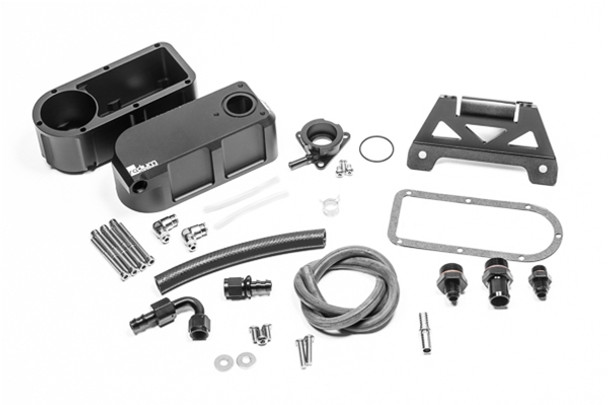

Features:

  • Billet Aluminum Coolant Tank
  • Anodized Aluminum Mounting Bracket
  • 6AN Male Adapter Fittings (x3)
  • 6AN 90 degree Push-Lok Hose Ends (x3)
  • Nickel-Plated Fittings and Sight Tube
  • Billet Aluminum 32mm Pressure Cap Receiver
  • Aluminum Pressure Bleed 1/4" Barb
  • Stainless Steel Hardware





Coolant expansion tanks are necessary for proper air bleeding in applications that utilize a rear mounted radiator or a low mounted radiator such as a V-Mount. However, expansion tanks are also valuable if integrated in a common radiator setup. To allow heat expansion, traditional coolant systems require air to be present in the top portion of the radiator during low temperatures. A coolant expansion tank permits the radiator to be 100% filled with coolant in all conditions.





The Radium Coolant Expansion Tank holds 750mL. It is a 2-piece design constructed of CNC billet 6061 aluminum. The two halves are bolted together along with a CNC billet aluminum radiator neck which accepts a standard 32mm "Mini" style pressure cap. The radiator cap must have a Type-A seal.





The coolant expansion tank features two internal chambers. These chambers are NOT isolated from each other. There is cross-over passages at the top and bottom. This product is not a coolant overflow tank. Instead, it is designed to part of the pressurized coolant system.





The Radium Engineering coolant header tank also has an internal swirl feature, as shown. Hot pressurized coolant from the cylinder head is sent into the vortex chamber's inlet tangentially and accelerated to a high rate of rotation. This is to help aid in deaerating the system.





The optional Radium Engineering pressure caps (sold separately) allow the user to select a range of pressure. The purpose of a high pressure cap is to increase the boiling point in the cooling system providing improved cooling efficiency. Each cap is manufactured from stainless steel with a race proven high pressure valve. This is something to consider when tracking the vehicle in extreme conditions.





Note: The OEM Pressure Cap cannot be reused. Below are the pressure ratings from Ford.

  • Mustang, S550: 1.45 Bar (21 psi)
  • Mustang, S197: 1.10 Bar (16 psi)
  • Shelby GT500: 1.10 Bar (16 psi)





Installation Instructions (opens in new tab): Click HERE







Part Number: 20-0286
