Whipple Gen 6 3.0L Supercharger Stage 1 Kit 2022-2023 Ford Mustang GT
![](https://cdn11.bigcommerce.com/s-hv2fboit44/stencil/796d69f0-f51a-013c-4f05-1208266c45ed/e/c206ed20-4907-013d-62ec-2a3aaaf44382/img/delivery.png)
Availability:
- Order Now Ships in 8-10 weeks
Frequently bought together:
Customer Reviews
![Prop65](https://cdn11.bigcommerce.com/s-hv2fboit44/stencil/796d69f0-f51a-013c-4f05-1208266c45ed/e/c206ed20-4907-013d-62ec-2a3aaaf44382/img/prop65.png)
Whipple Superchargers has once again redefined the boundaries of performance with our latest innovation. Building on the legacy of our record-breaking S550 supercharger system—renowned as the most potent and sophisticated in the market—we aimed even higher. The result is our revolutionary Stage 1 supercharger system, delivering an impressive 750 flywheel horsepower and 640 foot-pounds of torque, all within the stringent emissions regulations across all 50 states.

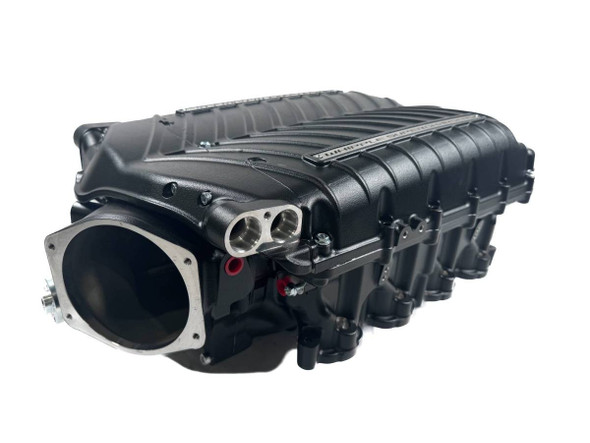

Our latest creation features the cutting-edge Generation 6 3.0L front feed twin-screw supercharger, a significant leap forward from its predecessors. This new supercharger boasts unparalleled efficiency across the entire rev range, thanks to its all-new bearings, gears, rotors, and housing. These innovations allow it to operate faster and more reliably, producing unprecedented power levels. The Gen 6's design includes a novel 3/4 rotor combination, a 285-degree helix angle for improved airflow, a redesigned bell mouth inlet, an optimized discharge port, and a diameter to length ratio optimized for peak efficiency.
In addition to its superior supercharger unit, the system features an all-new patented dual-core, dual-pass intercooler, surpassing even the substantial cooling capabilities of the Whipple Cooler used in the Ford Cobra Jets and record-setting S550 Mustangs. This, combined with the industry's leading heat exchanger, water reservoir, and intercooler pump, ensures optimal performance through lower boost levels and rapid recovery after intense driving conditions.
Leveraging decades of OEM and competitive racing insights, Whipple engineers have devised a bespoke PCM calibration protocol. This system intricately adjusts critical engine functions such as fuel delivery, spark timing, knock detection, torque management, transmission control, and electronic throttle regulation. The vehicle's PCM diligently monitors and adjusts engine torque, maintaining peak performance and reliability. This exclusive calibration, paired with the Whipple kit's unique software and the HP Tuner RTD flash tool, offers unparalleled control and update flexibility to our customers.
Each comprehensive Whipple system includes an IAT2 harness and sensor to meticulously gauge the temperature differential between incoming and compressed air post-intercooling, optimizing power output across varying conditions. The robust 6-rib billet idler setup, equipped with a billet spring-loaded tensioner, billet idler pulleys, and a lightweight pocketed supercharger pulley, is designed for easy upgrade to a 10-rib configuration if desired. The system also features an adjustable idler pulley, accommodating varying supercharger pulley sizes with minimal belt length adjustments. The expansive 150mm Roval inlet caters to a wide range of throttle bodies, from the standard 80mm to the larger 132mm or 150mm options.
With this unparalleled combination of power, precision, and versatility, the Whipple Supercharger system for the Ford Mustang sets a new standard for performance supercharging, ready to redefine your driving experience.
Note: Power numbers are quoted with 93 octane under ideal conditions, actual results may vary depending on conditions and testing procedures. 91 octane testing will always result in lower power numbers.
Emissions Disclaimer: This item IS CARB Legal (EO# D-231-105) and is available to ship to California.
Installation Instructions (opens in new tab): Click HERE
HP Tuner Instructions (opens in new tab): Click HERE
Part Number: WK-2628-STG1-30
